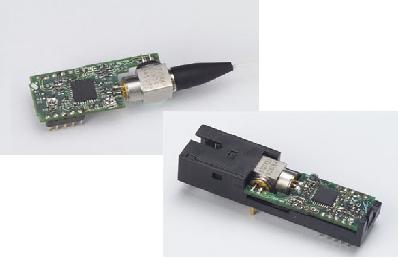

i7525N_FTTX Laser Diode Driver/Limiting Amplifier/for GEPON & GPON
- Integrate Laser diode driver and Limiting Amplifier
- Operation data rate 155Mbps and 1.25Gbps
- Programmable Modulation Current from 3mA to 80mA (DC-Coupled)
- Programmable modulation current with temperature compensation
- Programmable Bias Current from 1mA to 80mA
- Limiting Amplifier includes integrated DC offset cancellation circuit
- Polarity Control for limiting Amplifier Data path and Driver Disable input
- Programmable chatter-free signal level detector
- 4 mV input sensitivity (differential).
Dimensions
| Part Name | Applications | Supply Voltage | Package | Data Sheet |
|---|---|---|---|---|
| i7525BN |
GEPON/GPON ONU Transmitters Passive Optical Network (PON) Transmitters Fiber-to-the-Home(FTTH) and Fiber-to-the-Premises(FTTP) Broadband Access Systems |
3.3V | 28-Pin QFN 4mmx4mm |
Download |
