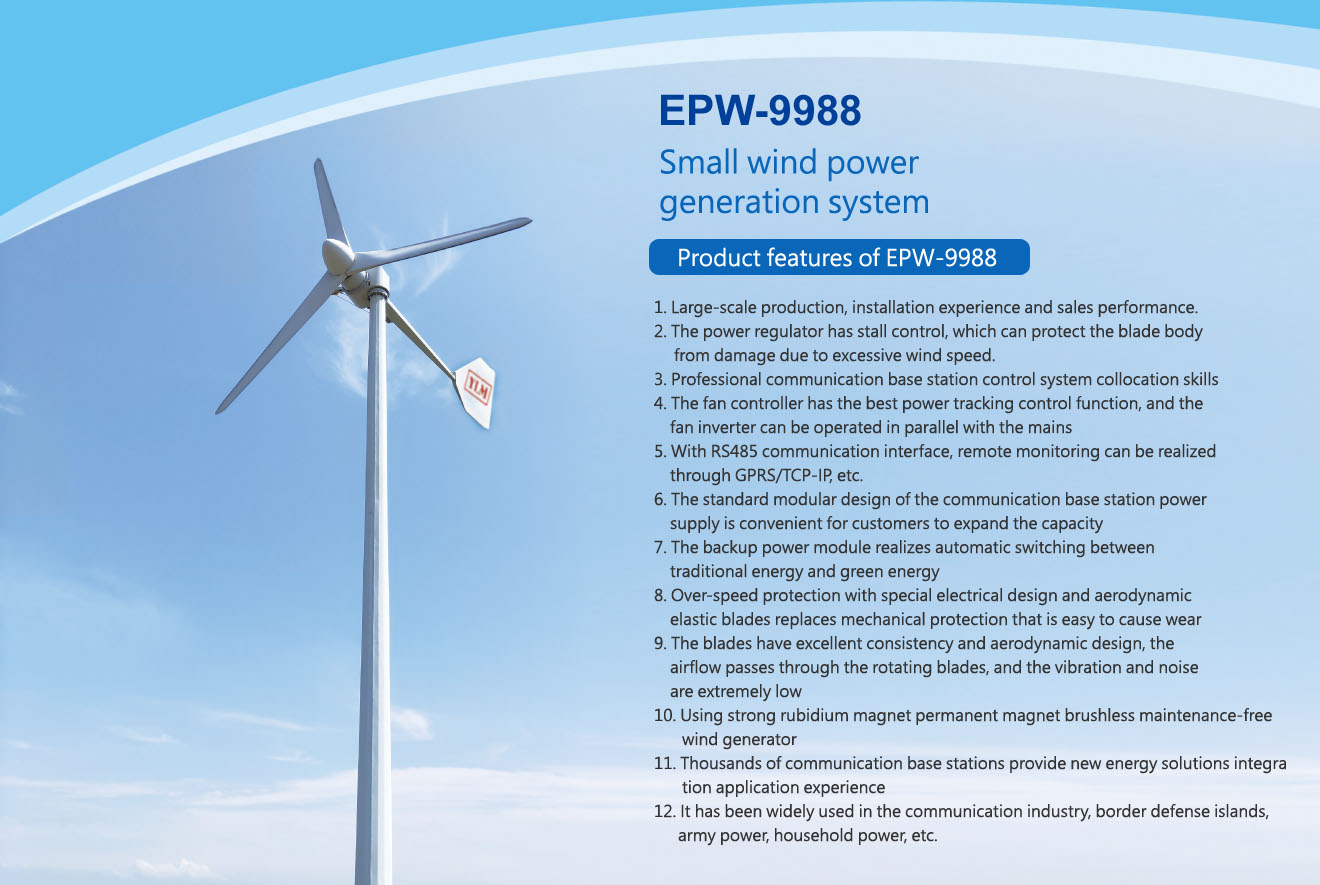

| MODEL |
EPW-9988 |
| Level |
IEC II |
| Fan wind direction |
Upwind |
| Design Life |
20 years |
| Fan Diameter |
7.8 m(26ft) |
| Wheel Housing Height |
12 m(40ft) |
| Column Type |
independent |
| POWER PERFORMANCE |
| Power |
9.8kW |
| Work Speed |
180RPM |
| Start wind speed |
3m/s |
| Standard wind speed |
10 m/s |
| Maximum wind speed |
50 m/s |
| WEIGHT |
| Fan blade |
45 kg |
| Body(Dynamotor) |
670 kg |
| Tower |
1,250 kg |
| BRAKE |
| Air brake |
Tail swing |
| Electronic brake |
Electromagnetic load relief |
Steering system
|
| Control 1 |
Wind swing |
| Control 2 |
Motor swing |
| Generator |
| Generator Type |
Permanent magnet generator |
| Voltage |
460VDC |
| Insulation level |
F(155℃ ) |
| Fan blade |
| Material |
Glass fiber |
| Length |
4.0m |
| Noise |
| Level |
< 60dBA |
| Environment |
| Operating temperature |
-20℃ to 50℃ |
| Protection class |
IP54 |
| Lightning protection |
Lightning protection module |
| Control/Inverter |
| Control type |
3P3W-AC/DC-1000Vp, 12kWp |
| Inverter type |
DC300-1000Vp, AC3P4W 230/400 60Hz, 12kWp |
| Monitor system |
GPRS, TCP/IP, RS*485 ports, Modbus Protocol |
